Pyranometers:
Pyranometers are radiometers designed for measuring the irradiance on a plane surface, normally from solar radiation and lamps.

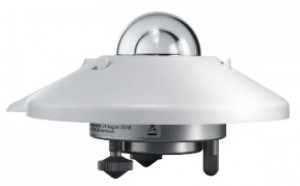

Pyranometer SMP 11
| Technical Data | |
|---|---|
| ISO- classification: | Secondary Standard |
| Response time (63%): | < 0,7 s |
| Response time (95%): | < 2 s |
| Zero-Offsets:Thermal radiation (200 W/m²) Temperature dependence (5 K/h) |
< 7 W/m² < 2 W/m² |
| Stability deviation (per annum): | < 0,5% |
| Non-linearity (0 … 1000 W/m²): | < 0,2% |
| Directional error (at 80 ° and 1000 W/m²): | < 10 W/m² |
| Temperature dependence of thesensitivity | < 1% (-20 … 50°C) < 2% (-40 … 70°C) |
| Inclination error (at 1000 W/m²): | < 0,2% |
| Maximum range of the digital output: | -400…4000 W/m² |
| Error accuracy: | 0,1° |
| Operating temperature:: | -40…80°C |
| Protection class: | IP67 |
| Supply voltage: | 5…30V DC |
| Power consumption (at 12 V DC): | 100 mW |
| Expected daily accuracy | < 2% |
| Irradiance Measurement | IP67 |
| Spectral range (50% points) | 285…2800 nm |
| Measuring range | 0…1600 W/m² |
Pyranometer CMP 11
The CMP 11 is particularly suitable for applications in the area of solar power.
| Technical Data | |
|---|---|
| Enclosure | Metal-plastic enclosure,Ø 150 mm x H 93 mm |
| Operating temperature | – 40 … 80 °C |
| Accuracy class under ISO 9060 | Secondary Standard |
| Response time (95%) | 5 s |
| Zero-Offset: (a) Thermal radiation (200 W/m²) (b) Accuracy of temperature (5 K/h) |
< 7 W/m² < 2 W/m² |
| Stability deviation (per annum) | < 0.5 % |
| Non linearity (0 to 1000 W/m²) | < 0.2 % |
| Directional error at 80° and 1000 W/m² | < 10 W/m² |
| Temperature dependence of the sensitivity |
< 1 % (-10 … 40 °C) |
| Inclination error (at 1000 W/m²) | < 0.2 % |
| Sensitivity | 7 … 14 μV/W/m² |
| Impedance | 10 … 100 ת |
| Leveling accuracy | 0,1 ° |
| Expected daily accuracy | < 2 % |
| Recommended applications | Meteorological applications,PV panels and monitoring of solar collectors, material test |
| Irradiance Measurement | |
| Spectral range: (50% points) | 285 … 2800 nm |
| Typical signal output for atmospheric applications | 0 … 15 mV |
| Maximum radiation absorption | 4000 W/m² |
| Output current | 4 … 20 mA |
| Measuring range | 0 … 1600 W/m2 |
Pyranometer CMP 10
The CMP 10 is particularly suitable for applications in the area of solar power.
| Technical Data | |
|---|---|
| Enclosure | Metal-plastic enclosure,Ø 150 mm x H 93 mm |
| Operating temperature | – 40 … 80 °C |
| Accuracy class under ISO 9060 | Secondary Standard |
| Response time (95%) | 5 s |
| Zero-Offset: (a) Thermal radiation (200 W/m²) (b) Accuracy of temperature (5 K/h) |
< 7 W/m² < 2 W/m² |
| Stability deviation (per annum) | < 0.5 % |
| Non linearity (0 to 1000 W/m²) | < 0.2 % |
| Directional error at 80° and 1000 W/m² | < 10 W/m² |
| Temperature dependence of the sensitivity |
< 1 % (-10 … 40 °C) |
| Inclination error (at 1000 W/m²) | < 0.2 % |
| Sensitivity | 7 … 14 μV/W/m² |
| Impedance | 10 … 100 ת |
| Leveling accuracy | 0,1 ° |
| Expected daily accuracy | < 2 % |
| Recommended applications | Meteorological applications,PV panels and monitoring of solar collectors, material test |
| Irradiance Measurement | |
| Spectral range: (50% points) | 285 … 2800 nm |
| Typical signal output for atmospheric applications | 0 … 15 mV |
| Maximum radiation absorption | 4000 W/m² |
| Output current | 4 … 20 mA |
| Measuring range | 0 … 1600 W/m2 |
AMPBOX
The sensor amplifier (AMPBOX) is an amplifier fed by a current loop. It allows for the pyranometer to be connected directly to the WEB’log.
| Technical Data | |
|---|---|
| Output current | 4…20 mA |
| Input voltage range | – 12…150 mV |
| Standard amplification | 2 mV/ 1 mA |
| Custom amplification | 0.1 mA/mV…4 mA/mV |
| Input impedance | 10 M ת |
| Zero setting | Up to 50% of the 4…20 mA range |
| Zero offset | < ± 1 μV/K |
| Non-linearity | < 0.2 % |
| Signal dynamism, output | 16 bit |
| Update time | 440 ms |
| Inaccuracy (the higher value in each case) |
± 0.05 % or ± 10 μV |
| Temperature range | – 40…80 °C |
| Supply voltage | 7.2…35 V DC |
| Voltage drop | 7.2V DC |
| Protection class | IP66 |
| Dimensions | 64 mm x 98 mm x 34 mm (WxLxH) |
| Weight | 0.25 kg |
| Cable diameter | 3…7 mm |
| Irradiance Measurement | |
| Spectral range: (50 % points) | 285 … 2800 nm |
| Typical signal output foratmospheric applications | 0 … 15 mV |
| Maximum radiation absorption | 4000 W/m² |
| Output current | 4 … 20 mA |
| Measuring range | 0 … 1600 W/m2 |
