Trinity Touch & First Solar Team Up

Trinity Trinity Touch is partnering with First Solar in order to provide best-in-class Balance of System Solutions…
Trinity Touch is a privately owned company started trading in 2002, the owners have been in this field since 1992; Trinity Touch Pvt Ltd has emerged as one of the leading companies engaged in Distribution, Logistics and Marketing activity providing value added services to its customers.
The company has always focused on the needs of the Industry and is playing a key role in enhancing the quality and competitiveness of manufactured industrial products in India by making available international quality products locally.

Trinity Touch is a market leader in Solar Solutions for photovoltaic plants. Till date, we have supplied over 17,500 MWp worth of solutions in India. We continue to expand our range of products in the Solar Industry.
Trinity Touch believes in providing customers with a -‘One Stop Shop’ for accessories required for a Solar Plant. We provide the complete set of weather sensors and components that are essential for proper monitoring of a Solar Plant.

About First Solar

First Solar is a leading global provider of comprehensive photovoltaic (PV) solar systems using advanced module and system technology. Through determined innovation, First Solar have achieved a significant milestone by delivering solar energy that is an economically attractive alternative to fossil-fuel sourced electricity. From module sales through turnkey power plant development and operations and maintenance, First Solar is a reliable, world-class partner for clean, renewable energy generation.
First Solar Series 6™ photovoltaic (PV) module sets a new industry benchmark for reliable energy production, optimized design and environmental performance. Series 6 modules are optimized for every stage of your application, significantly reducing balance of system, shipping, and operating costs.
For further details on First Solar kindly visit; www.firstsolar.com.
Market Position

The Solar Solutions provides market leading electrical solutions for utility scale solar plants. Till date, Trinity Touch has supplied over 17,500 MWp of String Monitoring Units and String Combiner Boxes in India and beyond. Trinity Touch also provides essential weather monitoring sensors required to effectively monitor PV plants.
The Array Junction Box combines the multiple DC input coming from the panel termination and converts these into one DC output.These solutions are customisable. The String Monitoring box is available in 8,16 & 24 string inputs and features are string monitoring of current and voltage measurements. The String Monitoring box B is also designed to communicate via Modbus RTU to the PLC/SCADA.

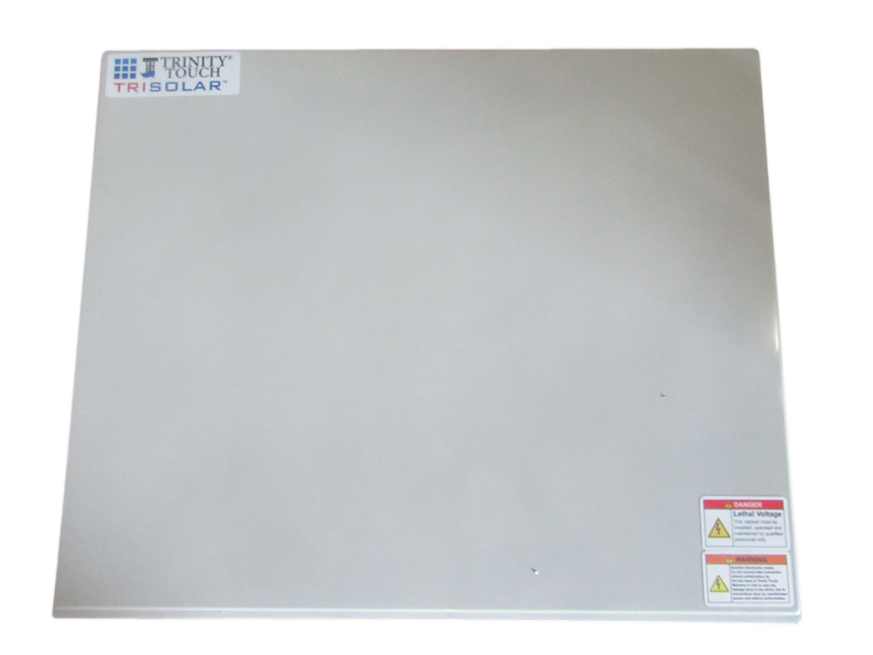

SMB for 16 in 1 OUT
Enclosure
Material Polycarbonate
Degree of Protection IP 66/67
UV Resistance Yes
Locking Arrangement Hinge & Latch
Mounting Type Wall mounted / Structure mounted
Electrical Parameters
Rated DC Voltage 1000V
Maximum current per string Optional upto 19A
Maximum current per measuring channel 30A
Total permissible DC current Up to 304A
Measurement voltage supply 24VDC
DC switch rating 400A-Three Pole
Surge Protection
1000VDC class II power SPD Yes
MODBUS SPD Yes
Input
No. of DC inputs (+Ve and -Ve) 16
Cable entry Bottom
Input DC cable entrance IP 68 PA-Cable glands
Fuses Optional up to 30A (10/15/20/25/30A)
Earth cable connection Earth terminal upto 16 sqmm
Earth cable entrance IP 68 polyamide cable gland
Monitoring device power source 2.5 A-24 VDC/ AC-DC Power Supply
Auxiliary AC cable 3Cx2.5 mm²
Output
No. of DC outputs (+Ve and -Ve) 1
DC output cable size upto 300sqmm
DC output cable exit IP 68 polyamide gland
Output cable termination Bolt type
Interface connection Rs485 cable 2x2C twisted pair shielded 0.5 mm² RS485 standard
RS485 cable IN/OUT IP 68 polyamide cable gland
Switch ON/OFF status Available (Optional)
SPD ON/OFF status Available (Optional)
Monitoring Device
Measuring parameters Input current, System voltage, Internal temperature
Input current monitoring Each string
Monitoring device TRICHECK 16
Type of monitoring Shunt
Voltage measurement accuracy ±0.25%
Current measurement accuracy ±0.25%
Power consumption <3W
On-board temperature measuring range 0-100°C
Digital ports 2
Shield clamp for earthing provided Yes
Analog ports 2
Communication interface MODBUS RS485
MODBUS ID Defined by DIP switches/ Firmware
Logs MODBUS RTU
Baud rate 2400bps / 4800bps / 9600bps / 19200bps
Maximum no. of devices on bus 240
Operating temperature -10 to 70°C
Applicable standards IEC 61326-1-2012
SMB for 20 in 1 OUT
Enclosure
Material Polycarbonate
Degree of Protection IP 66/67
UV Resistance Yes
Locking Arrangement Hinge & Latch
Mounting Type Wall mounted / Structure mounted
Electrical Parameters
Rated DC Voltage 1000V
Maximum current per string Optional upto 19A
Maximum current per measuring channel 30A
Total permissible DC current Up to 304A
Measurement voltage supply 24VDC
DC switch rating 400A-Three Pole
Surge Protection
1000VDC class II power SPD Yes
MODBUS SPD Yes
Input
No. of DC inputs (+Ve and -Ve) 20
Cable entry Bottom
Input DC cable entrance IP 68 PA-Cable glands
Fuses Optional up to 30A (10/15/20/25/30A)
Earth cable connection Earth terminal upto 16 sqmm
Earth cable entrance IP 68 polyamide cable gland
Monitoring device power source 2.5 A-24 VDC/ AC-DC Power Supply
Auxiliary AC cable 3Cx2.5 mm²
Output
No. of DC outputs (+Ve and -Ve) 1
DC output cable size upto 300sqmm
DC output cable exit IP 68 polyamide gland
Output cable termination Bolt type
Interface connection Rs485 cable 2x2C twisted pair shielded 0.5 mm² RS485 standard
RS485 cable IN/OUT IP 68 polyamide cable gland
Switch ON/OFF status Available (Optional)
SPD ON/OFF status Available (Optional)
Monitoring Device
Measuring parameters Input current, System voltage, Internal temperature
Input current monitoring Each string
Monitoring device TRICHECK 16
Type of monitoring Shunt
Voltage measurement accuracy ±0.25%
Current measurement accuracy ±0.25%
Power consumption <3W
On-board temperature measuring range 0-100°C
Digital ports 2
Shield clamp for earthing provided Yes
Analog ports 2
Communication interface MODBUS RS485
MODBUS ID Defined by DIP switches/ Firmware
Logs MODBUS RTU
Baud rate 2400bps / 4800bps / 9600bps / 19200bps
Maximum no. of devices on bus 240
Operating temperature -10 to 70°C
Applicable standards IEC 61326-1-2012

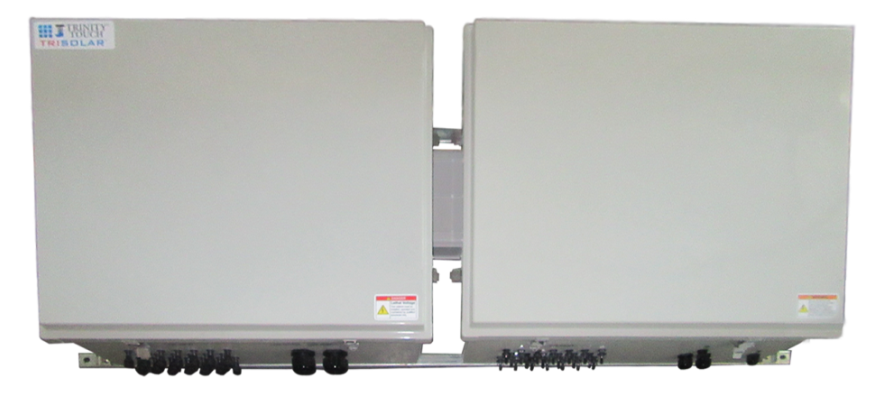

AJB for 16 in 1 out
Enclosure
Material FRP
Degree of Protection IP 66
UV Resistance Yes
Locking Arrangement Hinge & Latch
Mounting Type Wall mounted / Structure mounted
Electrical Parameters
Rated DC Voltage 1500V
Maximum current per string Optional upto 15A
Maximum current per measuring channel 30A
Total permissible DC current Up to 230A
DC switch rating 275A-3 POLE
Surge Protection
1500VDC class II power SPD Yes
Input
No. of DC inputs (+Ve and -Ve) 16
Cable entry Bottom
Input DC cable entrance IP 68 MC4 Type PV Connectors
Fuses Optional upto 30A (10/15/20/25/30 A)
Earth cable connection Earth terminal up to 35 mm²
Earth cable entrance IP 68 polyamide cable gland
Output
No. of DC outputs (+Ve and -Ve) 1
DC output cable size Up to 300 mm²
DC output cable exit IP 68 polyamide gland
Output cable termination Bolt type
