Weather Sensors

Lufft



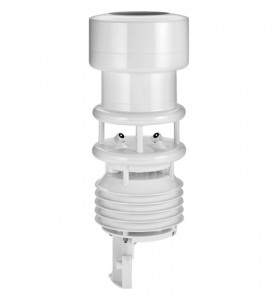

WS600-UMB
Compact Weather Station

•Air temperature,
•Relative humidity,
•Precipitation intensity,
•Precipitation type,
•Precipitation quantity,
•Air pressure,
•Wind direction,
•Wind speed,
All in one
Aspirated temperature/ humidity measurement
Maintenance-free operation
Open communication protocol:
– ASCII
– UMB
– SDI12
– MODBUS
– Analoge outputs in combination with 8160.UDAC

General Information
Heating 40 VA at 24 VDC
Protection type housing IP66
Interface RS485, 2-wire, half-duplex
Op. power consumption 24 VDC ±10 % < 0.4 VA(without heating)
Operating humidity range 0 … 100 %
Op. temperature range –50 … 60 ° C
Technical Data
Dimensions Ø approx. 150 mm, height approx. 345 mm
Weight approx. 2.2 kg
Temperature
Principle NTC
Measuring range –50 … 60 ° C
Accuracy ±0.2 ° C (–20 ° C … +50 ° C),otherwise ±0.5 ° C ( > –30 ° C)
Relative humidity
Principle Capacitive
Measuring range 0 … 100 % RH
Accuracy ±2 % RH
Precipitation intensity
Resolution 0.01 mm
Measuring range Drop size 0.3 … 5 mm
Reproducibility typ. > 90 %
Precipitation type
Rain/snow
Air pressure
Principle MEMS capacitive
Measuring range 300 … 1200 hPa
Accuracy ±1.5 hPa
Wind direction
Principle Ultrasonic
Measuring range 0 … 359.9 °
Accuracy ±3 °
Wind speed
Principle Ultrasonic
Measuring range 0 … 60 m/s
Accuracy ± 0.3 m/s or ±3 % (0 … 35 m/s)
Accessories
Surge protection
Power supply 24V/4A
UMB Interface converter ISOCON
Digital-analog-converter

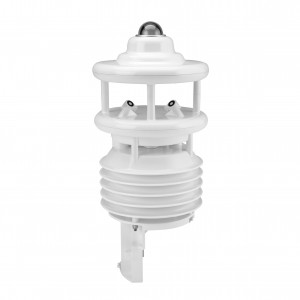

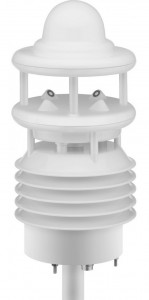

WS501-UMB
Compact Weather Station

•Air Temperature,
•Relative Humidity,
•Air Pressure,
•Wind direction,
•Wind speed,
•Solar Radiation
All in one
Aspirated temperature/ humidity measurement
Maintenance-free operation
Open communication protocol:
– ASCII
– UMB
– SDI12
– MODBUS
– Analoge outputs in combination with 8160.UDAC

General Information
Heating 20 VA at 24 VDC
Protection type housing IP66
Interface RS485, 2-wire, half-duplex
Operating power consumption 24 VDC±10 % <0. 4 VA(without heating)
Operating humidity range 0 … 100 %
Operating temperature range –50 … 60 ° C
Accessories
Surge protection
Power supply 24V/4A
UMB Interface converter ISOCON
Digital-analog-converter
Technical Data
Dimensions Ø approx. 150 mm, height 345 mm
Weight approx. 2.2 kg
Temperature
Principle NTC
Measuring range –50 … 60 ° C
Accuracy ±0.2 ° C (–20 ° C … +50 ° C),otherwise ±0.5 ° C ( =30 ° C)
Relative humidity
Principle Capacitive
Measuring range 0 … 100 % RH
Accuracy ±2 % RH
Radiation
Response time(95%) 18s
Non-stability (change/year) ±1 %
Non-linearity (0 to 1,000 W/m2) ±2.5 %
Directional error(at 80 ° with 1,000 W/m2) ±20 W/m2
Temperature dependence ofsensitivity ±5 % (–10 to +40 ° C)
Tilt error (at 1000 W/m2) ±3 %
Spectral range (50% points) 300 to 2,800 nm
Maximum irradiance 1,500 W/m2
Air pressure
Principle MEMS capacitive
Measuring range 300 … 1200 hPa
Accuracy ±1.5 hPa
Wind direction
Principle Ultrasonic
Measuring range 0 … 359.9 °
Accuracy ±3 °
Wind speed
Principle Ultrasonic
Measuring range 0 … 60 m/s
Accuracy ± 0.3 m/s or ±3 % (0 … 35 m/s)



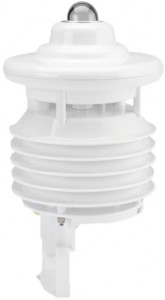

UMB-Sensor Overview WS601-UMB WS600-UMB WS501-UMB WS301-UMB
Temperature
Rel. humidity
Precipitation type
Precipitation intensity)
Rain accumulation
Leaf wetness
Air pressure
Wind direction
Wind speed
Electronic Compass
Radiance (solar radiation)
Visibility
Snow hight



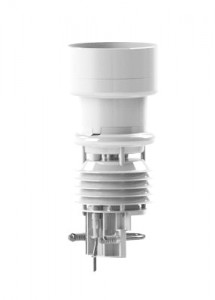

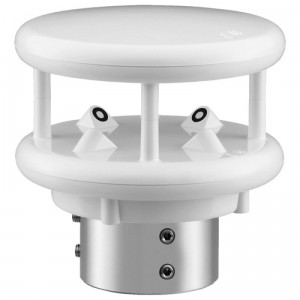

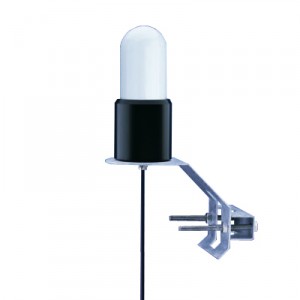

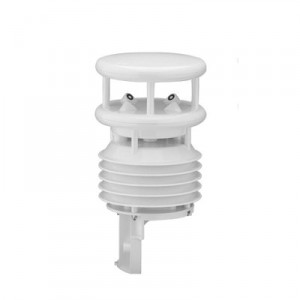

UMB-Sensor Overview WS500-UMB WS401-UMB VENTUS-UMB R2S-UMB
Temperature
Rel. humidity
Precipitation type
Precipitation intensity)
Rain accumulation
Leaf wetness
Air pressure
Wind direction
Wind speed
Electronic Compass
Radiance (solar radiation)
Visibility
Snow hight
