Type 2 Charging Cable for EVs

Trinity Touch is the most desired choice for high-quality EV Charging Connector with Cable, which offers perfect congruence with Type 2 charging ports. This Type 2 Charging Cable ensures trustworthy, competent and safe charging in Mode 3, C, optimal for both single-phase and three-phase requirements.

Key Features

  • Universal Compatibility: IEC 62196-2 Compliant.
  • Robust Build: Flame-retardant, UV-resistant thermoplastic material.
  • Certified Quality: Meets CE, RoHS, and IS 17017-2-2 standards.
  • Enhanced Safety: Insulation resistant.
  • Durable Design: 10,000 mating cycles for long-term use.

Applications

The EV Charging Connector with Cable is ideal for residential, commercial, and public charging stations. It is durable and reliably performs under diverse environmental conditions.

• EV charging connector with cable – Type 2

Type 16A, 1 Phase 32A, 1 Phase 16A, 3 Phase 32A, 3 Phase
Charging mode Mode 3, C
Rated current 16A 32 A 16A 32 A
Rated voltage AC 250V AC 415 V
Rated power KW 3.6 kW 7.2 kW 11 kW 22 kW
Withstand voltage (1 min) 2500V
Insulation resistance >1000 MΩ (DC 500V)
Contact resistance 0.5 mΩ Max
Terminal temperature rise <50K
Operating temperature -30˚C to 55˚C
Mating/Insertion force <100 N
Mechanical life (no load) ≥10000
Shell material Thermoplastic
Flame class UL94 V-0, 5VA
UV resistance Outdoor duty
Degree of protection IP54 (Plugged in), IP65 (Protective cap)
PIN material Cu alloy
Cable structure 3CX2.5+1CX0.5 3CX6+1CX0.5 5CX2.5+1CX0.5 5CX6+1CX0.5
Outer dia* 10.10 ± 0.3 mm 12.50 ± 0.3 mm 12.80 ± 0.4 mm 16.50 ± 0.4 mm
Resistance coding (between PE and PP) Resistance 680Ω
Certification CE, RoHS, IEC 62196-2 and IS 17017-2-2
Cable Standards EN 50620

Type 2 charging cable for Type 2 vehicle connector with open cable end, suitable for charging in MODE 3, C

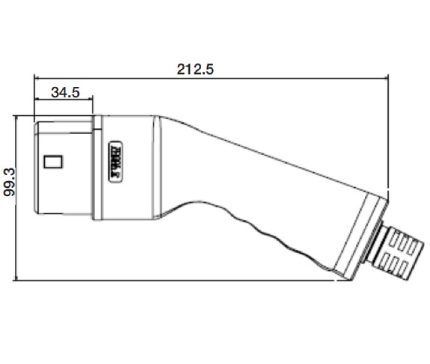

Dimensional Overview

Picture – 1

Picture – 2

Picture – 3

Color 16A,1P AC 16A,3P AC 32A,1P AC 32A,3P AC
L1 BN 2.5 mm² 2.5 mm² 6.0 mm² 6.0 mm²
L2 BK – 2.5 mm² – 6.0 mm²
L3 GY – 2.5 mm² – 6.0 mm²
N BU 2.5 mm² 2.5 mm² 6.0 mm² 6.0 mm²
PE GNYE 2.5 mm² 2.5 mm² 6.0 mm² 6.0 mm²
CP WH 0.5 mm² 0.5 mm² 0.5 mm² 0.5 mm²
Article Description Rated current (A) Phase Rated voltage (AC) Power (kW) Cable size (mm ) Cable length (Mtr.)
011710081 TTEV16A-1P5T2 16 1 250 3.6 3CX2.5+1CX0.5 5
011710082 TTEV16A-3P5T2 16 3 480 11 5CX2.5+1CX0.5 5
011710083 TTEV32A-1P5T2 32 1 250 7.2 3CX6+1CX0.5 5
011710084 TTEV32A-3P5T2 32 3 480 22 5CX6+1CX0.5 5
Configuration TTEV XX A X P X M T2
EV Charging Connector with cable Current rating – 16A or 32A No of phases – 1P or 3P Cable length in meter Type 2
